Bo mạch chủ - Mainboard
Thông số kỹ thuật:
- CPU:
+ Hỗ trợ Intel® Socket 1200 for 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors
+ Hỗ trợ Intel® 14nm CPU
+ Hỗ trợ Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0
- Chipset: Intel® Z490
- Memmory:
+ Dual Channel Memory Architecture
+ OptiMem II
+ Hỗ trợ Intel® Extreme Memory Profile (XMP)
+ 4 x DIMM, Max. 128GB, DDR4
- Graphic: Integrated Graphics Processor
+ 1 x DisplayPort 1.4, độ phân giải tối đa 4096 x 2304 @60Hz.
+ 1 x HDMI 1.4b
- Hộ trợ Multi - GPU:
+ Hỗ trợ công nghệ NVIDIA 2-Way SLI®
+ Hỗ trợ công nghệ AMD 3-Way CrossFireX™
- Khe mở rộng:
+ 1 x PCIe 3.0 x16 (max at x4 mode)
+ 3 x PCIe 3.0 x1
+ 2 x PCIe 3.0 x16 (x16 or dual x8)
- Storage:
+ Hỗ trợ 2x M.2 slots và 6xSATA 6Gb/s ports
+ Support Raid 0, 1, 5, 10
+ Intel® Optane™ Memory Ready
- LAN:
+ Intel® I225-V 2.5Gb Ethernet
+ ASUS LANGuard
- Audio: SupremeFX Shielding™ Technology
+ Audio codec: SupremeFX S1220A
+ Audio effects: Sonic Studio III + Sonic Studio Virtual Mixer + Sonic Radar III + DTS® Sound Unbound
- Wireless: M.2 Socket (Key E) only
- USB Ports
+ Rear USB Port ( Total 8 )
2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
2 x USB 2.0 port(s)
+ Front USB Port ( Total 7 )
1 x USB 3.2 Gen 1 port(s)(1 x USB Type-C®)
4 x USB 3.2 Gen 2 port(s)(3 x Type-A +1 x Type-C)

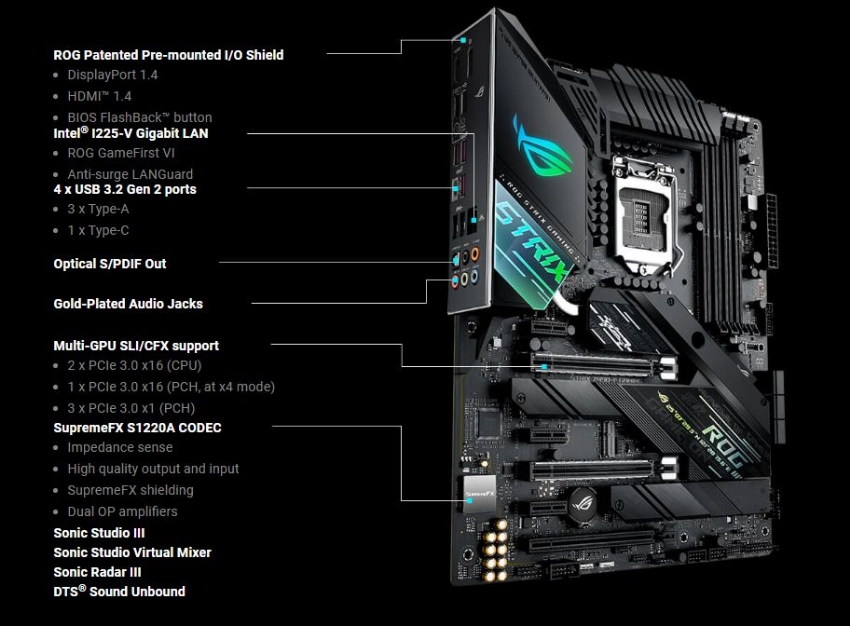

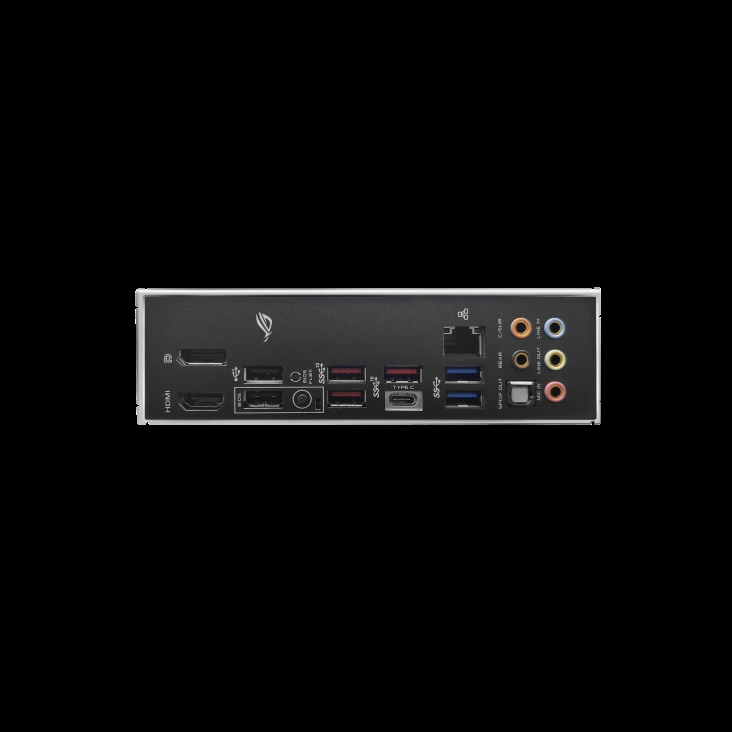

- Back I/O Ports
+ 1 x Intel® I225-V 2.5Gb Ethernet
+ 1 x DisplayPort
+ 1 x HDMI
+ 4 x USB 3.2 Gen 2 (3 x Type-A+1 x USB Type-C®)
+ 2 x USB 3.2 Gen 1
+ 2 x USB 2.0
+ 1 x Optical S/PDIF out
+ 1 x USB BIOS FlashBack™ Button(s)
+ 5 x Gold-plated audio jacks

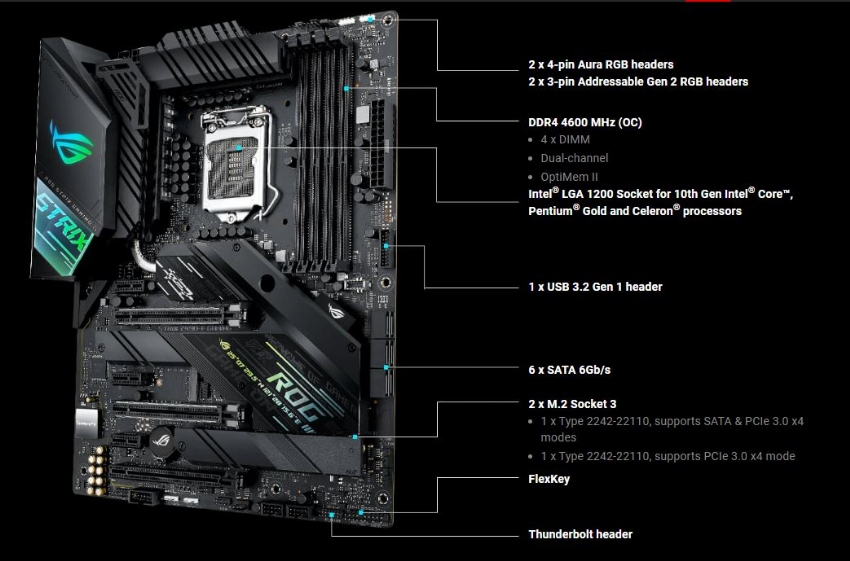

- Internal I/O Ports
+ 1 x CPU Fan connector(s)
+ 1 x CPU OPT Fan connector(s)
+ 2 x Chassis Fan connector(s)
+ 1 x AIO_PUMP connector
+ 1 x W_PUMP+ connector
+ 2 x Addressable RGB header
+ 1 x AAFP connector
+ 2 x Aura RGB Strip Headers
+ 1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
+ 2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

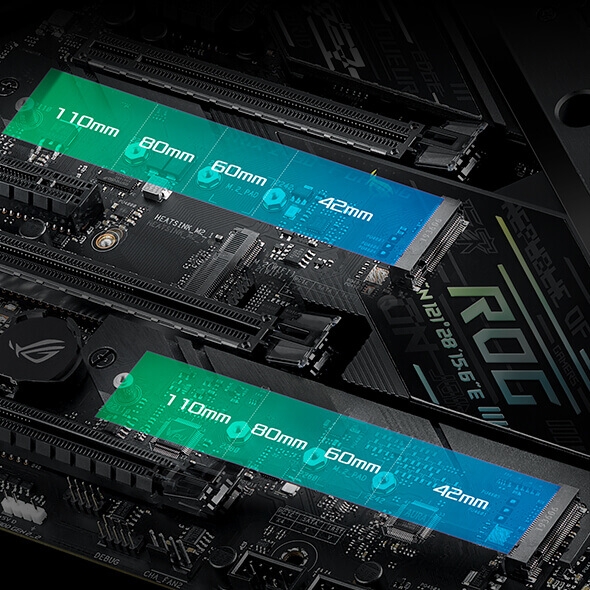

+ 1 x M.2 Socket 1 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & PCIE mode)
+ 1 x M.2 Socket 2 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
+ 1 x M.2 with E key for Wi-Fi module
+ 1 x COM port(s) connector(s)
+ 6 x SATA 6Gb/s connector(s)
+ 1 x Thunderbolt header(s)
+ 1 x 24-pin EATX Power connector(s)
+ 1 x 8-pin ATX 12V Power connector(s)
+ 1 x 4-pin ATX 12V Power connector(s)
+ 1 x System panel(s) (Chassis intrusion header is inbuilt)
+ 1 x Thermal sensor connector(s)
+ 1 x Clear CMOS jumper(s)
+ 1 x CPU_OV jumper
+ 1 x M.2 Fan Header
+ 1 x VRM_HS_FAN Header
+ 1 x USB 3.2 Gen 1 front panel TypeC™ connector
- Form Factor
+ ATX Form Factor
+ 12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
--> Note
*When M.2_1 is operating in SATA device, SATA6G_2 will be disabled.
* M.2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated SATA6G_56 will be disabled.
