Mainboard GIGABYTE B460M DS3H V2 (rev. 1.0)

MSP: B460M-DS3H-V2
2,200,000đ

  0937505118 - 0908746118

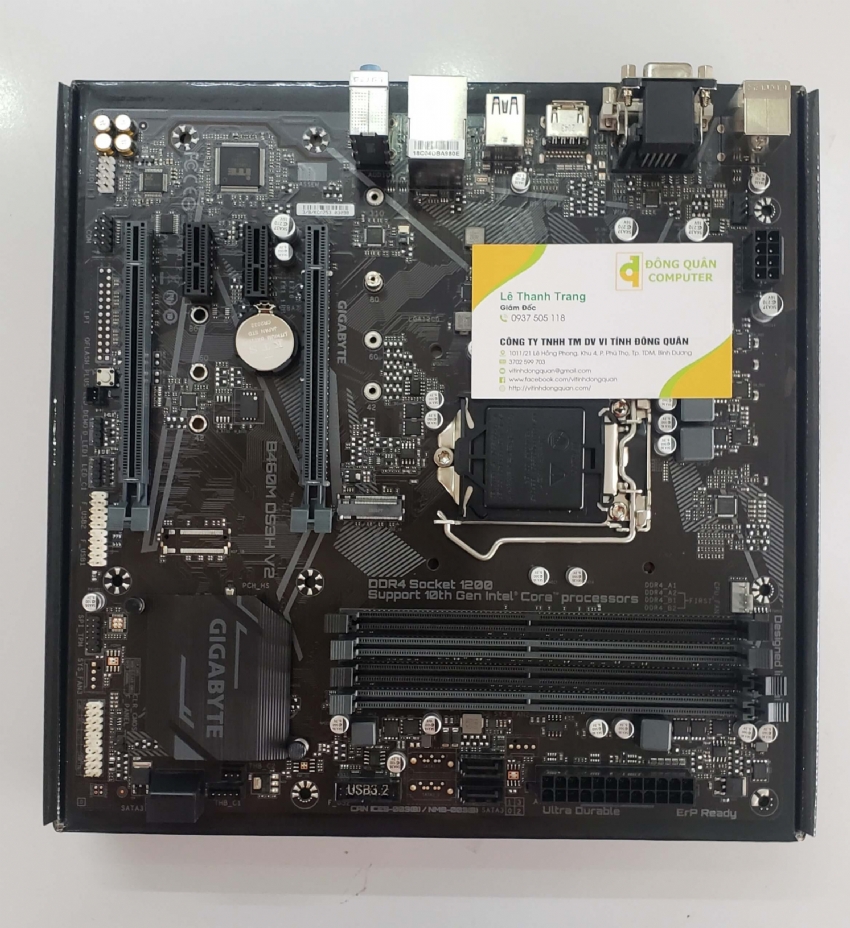

Mainboard GIGABYTE B460M DS3H V2 (rev. 1.0)

- Hãng sản xuất: GIGABYTE

- Model: B460M DS3H V2 (rev. 1.0)

- Chipset: Intel®H470 Express Chipset

- Socket: Intel® LGA1200

- Loại main (Form factor): Micro ATX Form Factor (24.4cm x 24.4cm)

- Link tải Driver Mainboard tài liệu hướng dẫn: Drivers&Manuals

- Hỗ trợ CPU:

      Thế hệ thứ 10 của các CPU: Intel® Core™ i9 processors / Intel® Core™ i7 processors Intel® Core™ i5 processors / Intel® Core™ i3 processors / Intel® Pentium® processors / Intel® Celeron® processors

- Hỗ trợ Ram: Tối đa 4 khe RAM, mỗi khe Ram tối đa 32GB, kiến trúc kênh đôi (Dual Channel)

      Với CPU Intel® Core™ i9/i7 thế hệ 10DDR4 2933/2666/2400/2133 MHz

      Với CPU Intel® Core™ i5/i3/Pentium®/Celeron®  thế hệ 10: DDR4 2666/2400/2133 MHz

- Khe cắm mở rộng:

      1 x PCI Express x16 , chạy ở x16 (PCIEX16), nên gắn VGA ở khe này để tối ưu hiệu suất.

      1 x PCI Express x16, chạy ở x4 (PCIEX4)

      1 x PCI Express x1

      (Tất cả khe PCIe  phù hợp với PCI Express 3.0  Standard)

- Công nghệ Multi-Graphics: Hỗ trợ AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™

- Kết nối ổ cứng:

      1 x M.2 SSD:  hỗ trợ PCIe 3.0 x4/x2 và 2242/2260/2280/22110 PCIe (Socket 3, loại M key)

      4 x SATA 6Gb/s

      Hỗ trợ RAID 0, RAID 1, RAID 5, và RAID 10

      Hỗ trợ Intel® Optane™ Memory Ready

- Kết nối nguồn Main: nguồn phụ: 8pin ATX 12V, nguồn chính: 24-pin ATX 12V

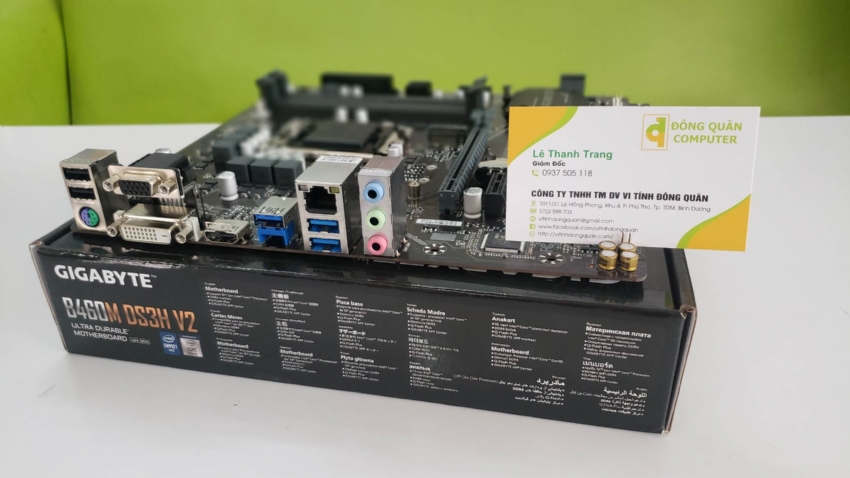

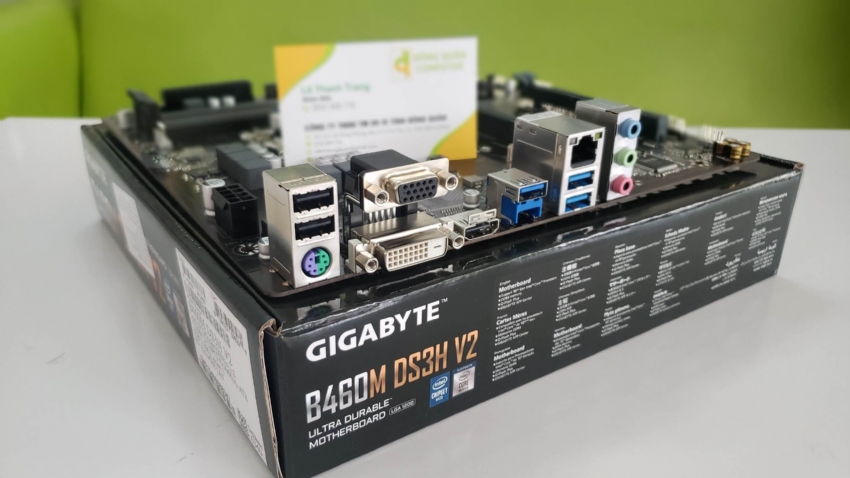

- Cổng kết nối sau

          1 x 24-pin ATX main power connector

          1 x 8-pin ATX 12V power connector

          1 x CPU fan header

          2 x RGB LED strip headers

          4 x SATA 6Gb/s connectors

          1 x M.2 Socket 3 connector

          1 x front panel header

          1 x front panel audio header

          1 x USB 3.2 Gen 1 header

          2 x USB 2.0/1.1 headers

          1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

          2 x serial port headers

          1 x parallel port header

          1 x Clear CMOS jumper

          1 x Q-Flash Plus button

- Controller I/O: iTE® I/O Controller Chip

- Controller mạng (LAN): Intel® GbE LAN chip (1000 Mbit/100 Mbit)

- Controller audio:

          Realtek® Audio CODEC

          High Definition Audio

- Tính năng BIOS:

          EasyTune

          Fast Boot

          Game Boost

          ON/OFF Charge

          RGB Fusion

          Smart Backup

          System Information Viewer

          Support for Q-Flash Plus

          Support for Q-Flash

- Tính năng phần cứng:

          Voltage detection

          Temperature detection

          Fan speed detection

          Fan fail warning

          Fan speed control
